Canon PIXMA Overview

Designed for high volume printing at low running cost

● Print, Scan, Copy
● Print Speed (A4, ISO): up to 8.8 / 5 ipm (mono/colour)
● USB 2.0
● Recommended Monthly Print Volume: 150 - 1500 pages

Specification
Printer
● Maximum Printing Resolution: 4800 (horizontal)*1 x 1200 (vertical) dpi
Print Head / Ink
● Number of Nozzles:Total 1,472 nozzles
● Ink Bottles: GI-790 (Black, Cyan, Magenta, Yellow)
Printer
● Maximum Printing Resolution 4800 (horizontal)*1 x 1200 (vertical) dpi
● Print Head / Ink Number of Nozzles: Total 1,472 nozzles
● Ink Bottles GI-790 (Black, Cyan, Magenta, Yellow)
● Print Speed*2 (Approx) Based on ISO / IEC 24734, Click here summary report,Click here for Document Print and Copy Speed Measurement Conditions
● Document: Col ESAT / Simplex : 5.0 ipm
● Document: Mono: ESAT / Simplex: 8.8 ipm
● Document: Col FPOT Ready/Simplex: 17 sec
● Document: Mono FPOT Ready/Simplex: 11 sec
● Document: Col FPOT Sleep/Simplex: 21 sec
● Document: Mono FPOT Sleep/Simplex: 14 sec
● Photo (4 x 6") PP-201 / Borderless: 60 sec
● Printable Width
● Bordered: Up to 203.2 mm (8 inch)
● Borderless: Up to 216 mm (8.5 inch)
● Printable Area
● Borderless Printing*3 : Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A4 / Letter / 4 x 6" / 5 x 7" / 8 x 10" / Square (5 x 5") / Business Card)

● Bordered Printing: Top margin: 3 mm,
● Bottom margin: 5 mm,
● Left / Right margin: each 3.4 mm
● (Letter / Legal: Left: 6.4 mm, Right: 6.3 mm)

● Recommended Printing Area
● Top margin: 31.2 mm
● Bottom margin: 32.5 mm
● Paper Size: A4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", 8x 10", Envelopes (DL, COM10), Square (5 x 5"), Business Card, Custom size (width 55 - 215.9 mm, length 89 - 676 mm)
● * F4 is possible via custom size settings.
● Paper Handling (Rear Tray)(Maximum Number)
● Plain Paper: A4, A5, B5, Letter = 100, Legal = 10
● High Resolution Paper: (HR-101N) A4, Letter = 80
● Photo Paper Plus Glossy II (PP-201): A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10, Square (5 x 5") = 20
● Photo Paper Plus Semi-Gloss (SG-201): A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10
● Matte Photo Paper (MP-101): A4, Letter = 10, 4 x 6" = 20
● Envelope: European DL / US Com. #10 = 10
● Glossy Photo Paper "Everyday Use" (GP-508): A4 = 10, 4 x 6" = 20
● Photo Paper Plus Glossy II (PP-208): A4, 4 x 6" = 10
● Photo Sticker: PS-208, PS-808 = 1
● Paper Weight
● Rear Tray: Plain Paper: 64 - 105 g/m2, Canon specialty paper: Max. 275 g/m2 Photo Paper Plus Glossy II (PP-201)
● Ink End Sensor: Dot count
● Print Head Alignment: Manual
Scan*4
● Scanner Type: Flatbed
● Scanning Method CIS: (Contact Image Sensor)
● Optical Resolution*5: 600 x 1200 dpi
● Scanning Bit Depth (Input / Output): Grayscale: 16 / 8-bit
● Colour:48 / 24-bit (RGB each 16 / 8-bit)
● Line Scanning Speed*6 Grayscale: 1.5 ms/line (300 dpi)
● Colour:3.5 ms/line (300 dpi)
● Scanning Speed*7 Reflective: A4 Colour / 300 dpi Approx. 19 sec
● Maximum Document Size Flatbed: A4 / Letter (216 x 297 mm)
Copy
● Maximum Document Size: A4 / Letter (216 x 297 mm)
● Compatible Media Size: A4, Letter
● Type: Plain Paper
● Image Quality: Plain Paper: Fast, Standard
● Copy Speed*8 (Approx.) Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions
● Document: Colour sFCOT / Simplex: 32 sec
● Document: Colour sESAT / Simplex: 1.7 ipm
● Multiple Copy: Mono / Colour: 1 - 20 pages
● System Requirements
● (Please visit https://asia.canon to check OS compatibility and to download the latest driver updates)
● Windows: Windows 10, Windows 8.1, Windows 7 SP1
● Macintosh: Mac OS is not supported
Operation

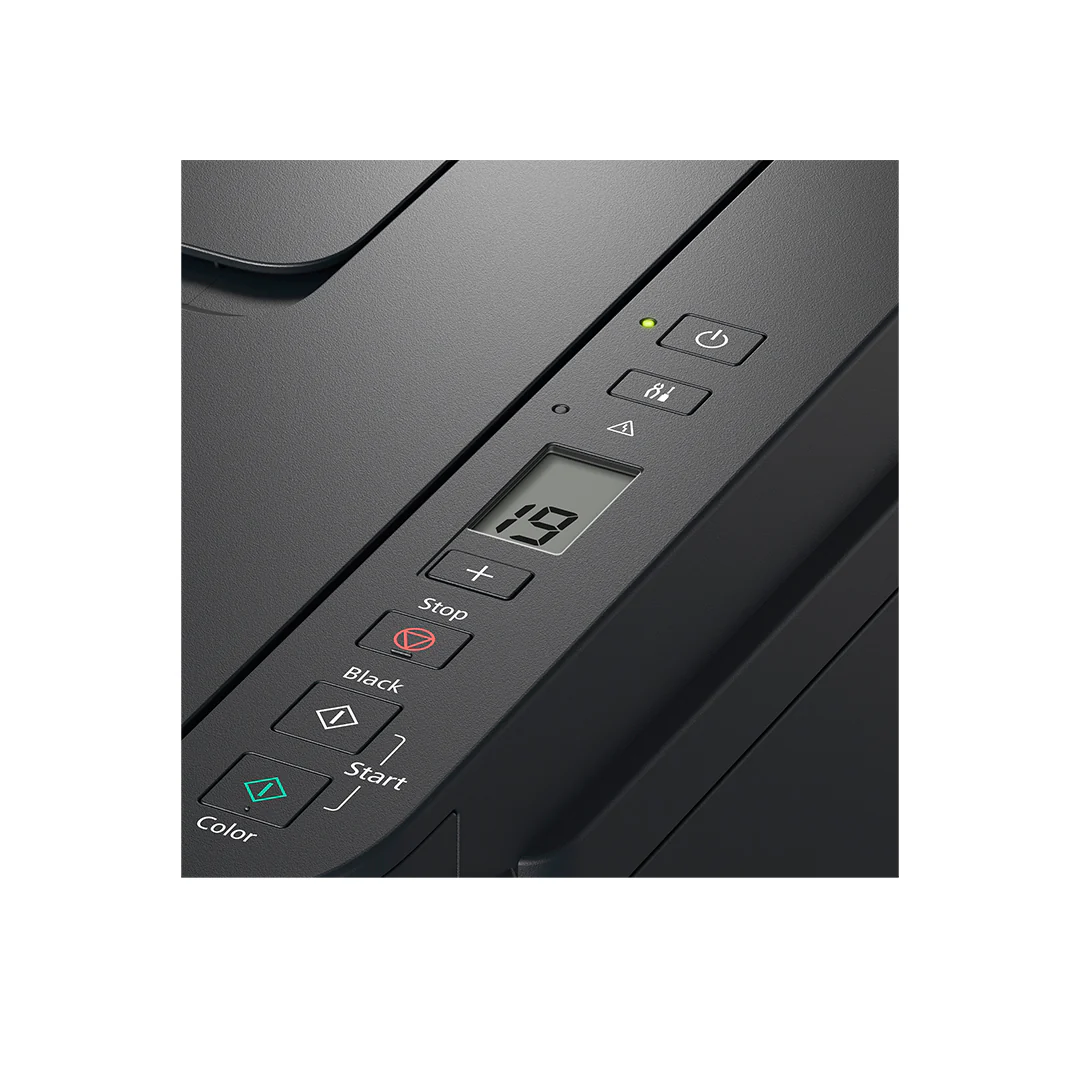

● Panel Display: LCD (1.2 inch segment mono)
● Interface: USB 2.0 Hi-Speed
● Paper Output Tray: A4, Letter = 50, Legal = 10

● Operating Environment*9 Temperature: 5 - 35°C
● Humidity: 10 - 90% RH (no dew condensation)

● Recommended Environment*10 Temperature: 15 - 30°C
● Humidity: 10 - 80% RH (no dew condensation)
● Storage Environment Temperature: 0 - 40°C
● Humidity: 5 - 95% RH (no dew condensation)
● Quiet Mode: Available
● Acoustic Noise (PC Print)*11(Approx.): Plain Paper (A4, B/W) Approx. 53.5 dB(A)
● Power: AC 100 - 240 V; 50/60 Hz
● Power: Consumption (Approx.)Connection to PC USB
● OFF:0.2 W
● Standby (scanning lamp is off) (USB connection to PC): 0.6 W
● Standby (all ports connected, scanning lamp is off): 0.6 W
● Copying*12: G2010: 9 W
● Environment Regulation: RoHS (EU, China), WEEE (EU)

● Dimension (W x D x H) (Approx.) Factory configuration: 445 x 330 x 135 mm
● Output / ADF trays extended: 445 x 533 x 260 mm
● Weight (Approx.): 6.3 kg
